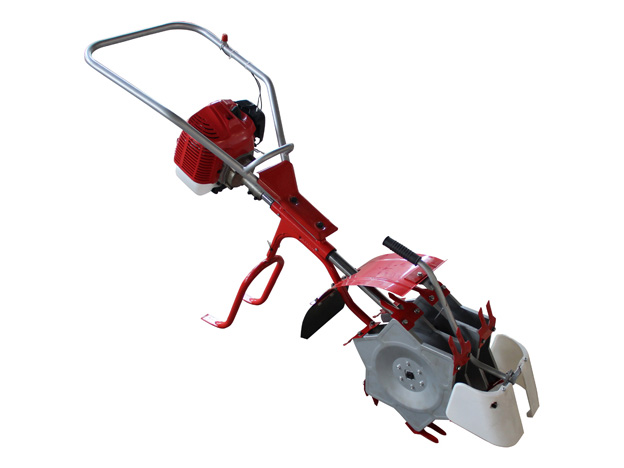

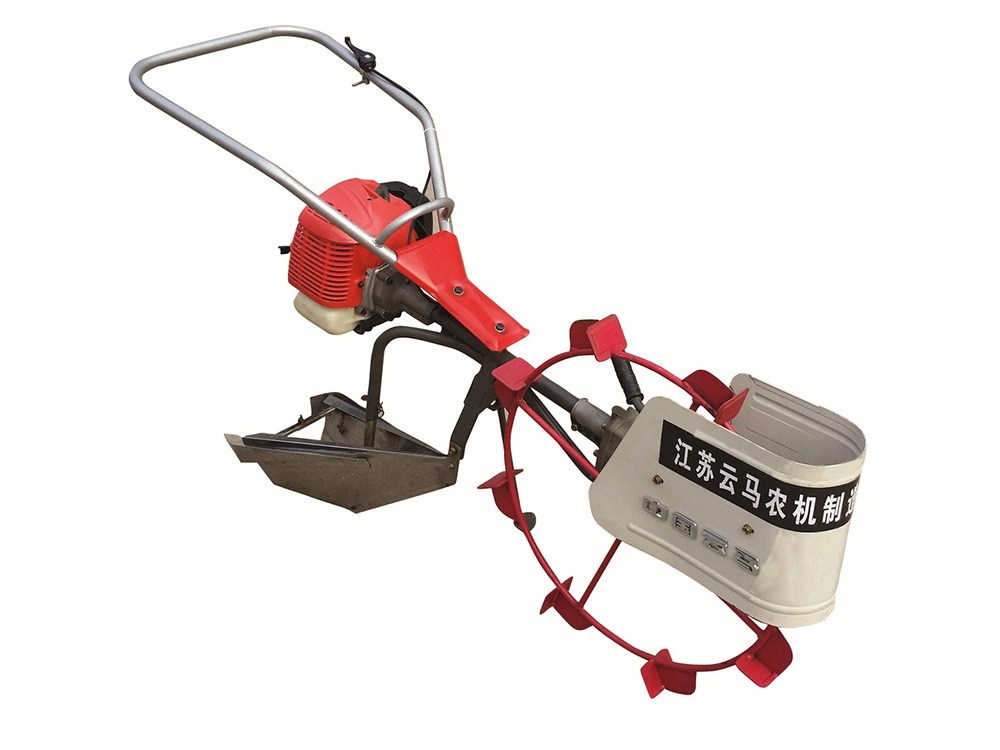

3GZC-2 Paddy Field Weeding Machine
Product Details
1、 Product Introduction
This product is suitable for weeding rice in the field. It replaces the use of herbicides, reduces environmental pollution, avoids soil compaction, and is an essential tool for planting organic rice. The machine is small in size, light in weight, lightweight and easy to move, economical and practical.
2、 Main technical parameters
| Project | Technical Parameter | |
| Model | 3GZC-2 type | |
| Engine | type | gasoline engine |
| Rated power kW | 1.46 | |
| Rated speed r/min | 6500 | |
| Overall dimensions (length × wide × Height) mm | 1350×540×890 | |
| Tillage depth mm | 10～20 | |
| Number of work lines | 2 | |
| Working width mm | 170×2 | |
| Number of weeding rakes (pieces) | 6 (Effective length of paddy field teeth 56 mm; water depth 20-50mm) ×2 | |
| Knife shaft speed r/min | 186 | |
| Transmission mode | Intermediate shaft transmission | |
| Connection method | Centrifugal clutch | |
| Structural mass kg | 24 | |
| Working forward speed km/h | 2.79～4.30 | |
| Hourly productivity of homework hm2/h | 0.13～0.20 | |
